Deploying the Embedded for Xerox application to the MFPs

Deployment Steps

  1. Navigate to the Workflow webpage.

  2. Enter credentials for a user with the Print Audit Administrator Role assigned.

  3. Navigate to Embedded from the left menu selection and click on Copiers.

    screen capture - IUM Embedded menu

  4. Click Create to setup a new copier and ensure the type drop down is set to the correct device manufacturer.

    screen capture - create copierin IUM

  5. Enter an easily identifiable name, the IP address of the device, Administrator Password and the server hosting the Embedded application.

  6. If the provided credentials are correct and the application is successfully registered the device editing page will be displayed with additional configuration options.

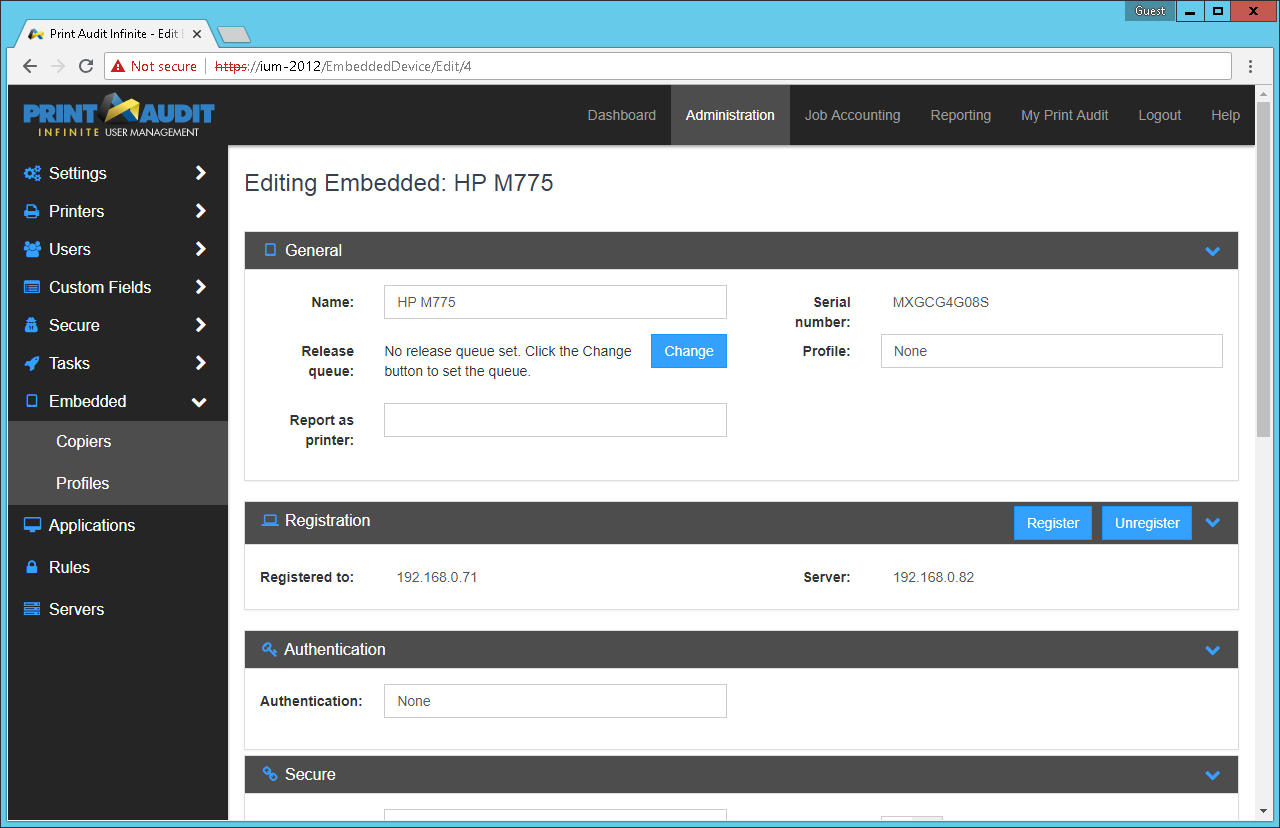

    screen capture - Edit the device
